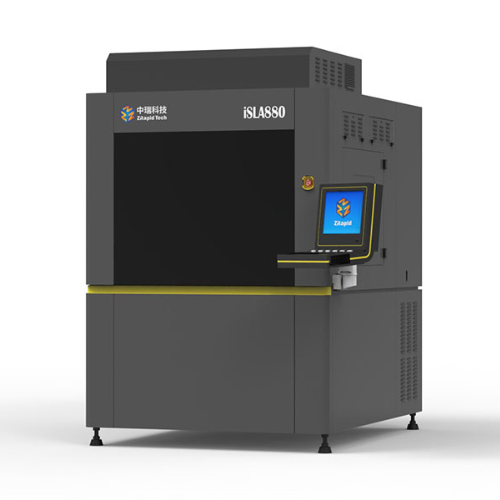

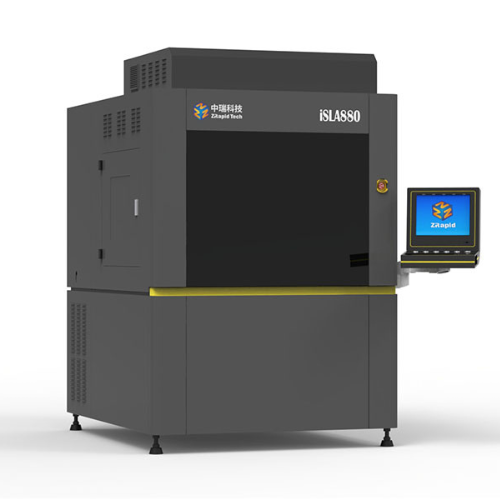

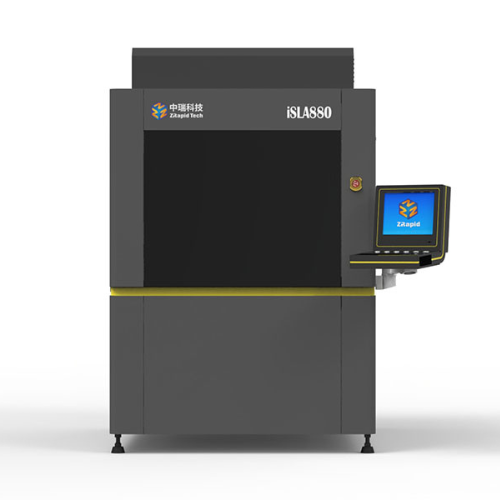

ZRapid iSLA880 Industrial SLA 3D Printer for Large-Format Resin Printing
The iSLA 880 is a large-format industrial SLA 3D printer built for high-speed, ultra-precise resin printing at scale. Engineered with a powerful 355nm UV laser and ZRapid’s advanced iSLA Control System, this machine offers superior part accuracy, exceptional surface finish, and unmatched reliability for mass production and large prototyping applications.
With its expanded build volume and advanced scanning technology, the iSLA 880 is ideal for producing complex, high-resolution parts across industries like automotive, aerospace, healthcare, and education. Now available in India through Make3D, the iSLA 880 combines global SLA innovation with local service and support to power your industrial manufacturing needs.
How SLA 3D Printing Works
SLA (Stereolithography) is an additive manufacturing process where a UV laser is used to selectively cure a vat of liquid photopolymer resin layer by layer. Powered by CAM/CAD software, the laser draws each cross-section of the 3D model with extreme precision. As the resin reacts to UV light, it solidifies to form the final 3D object one layer at a time.
Key Features
High speed · High precision · High quality
SLA 3D Printers

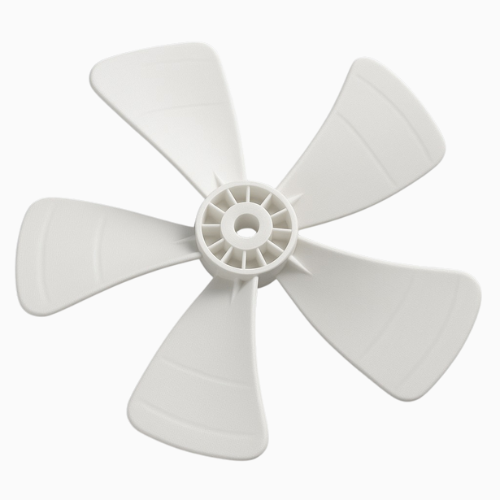

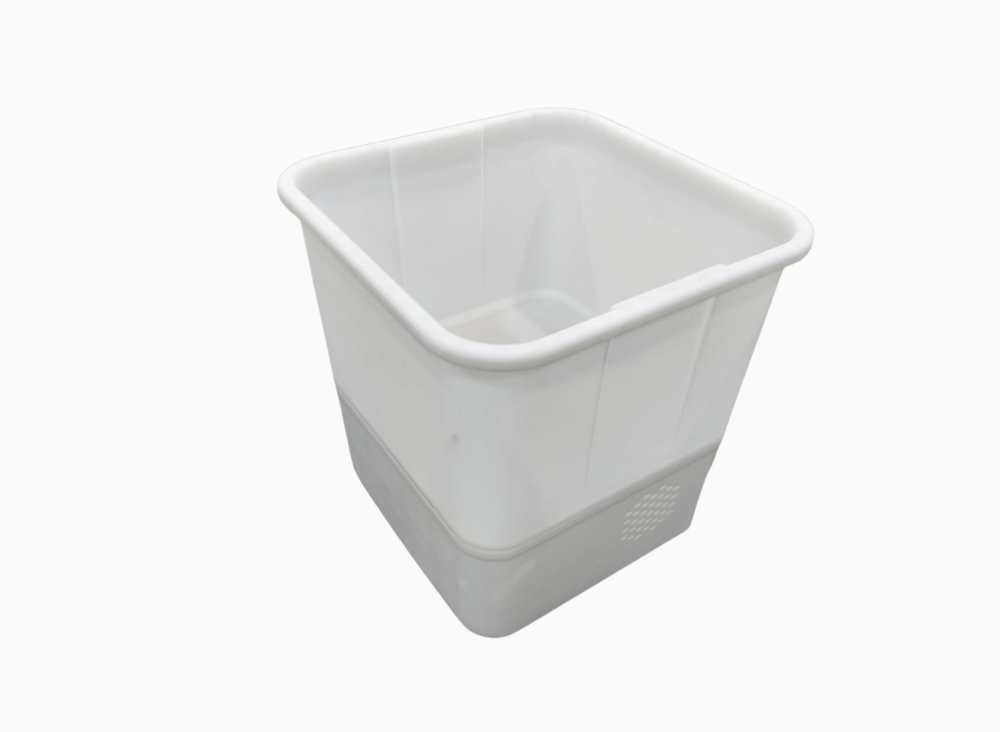

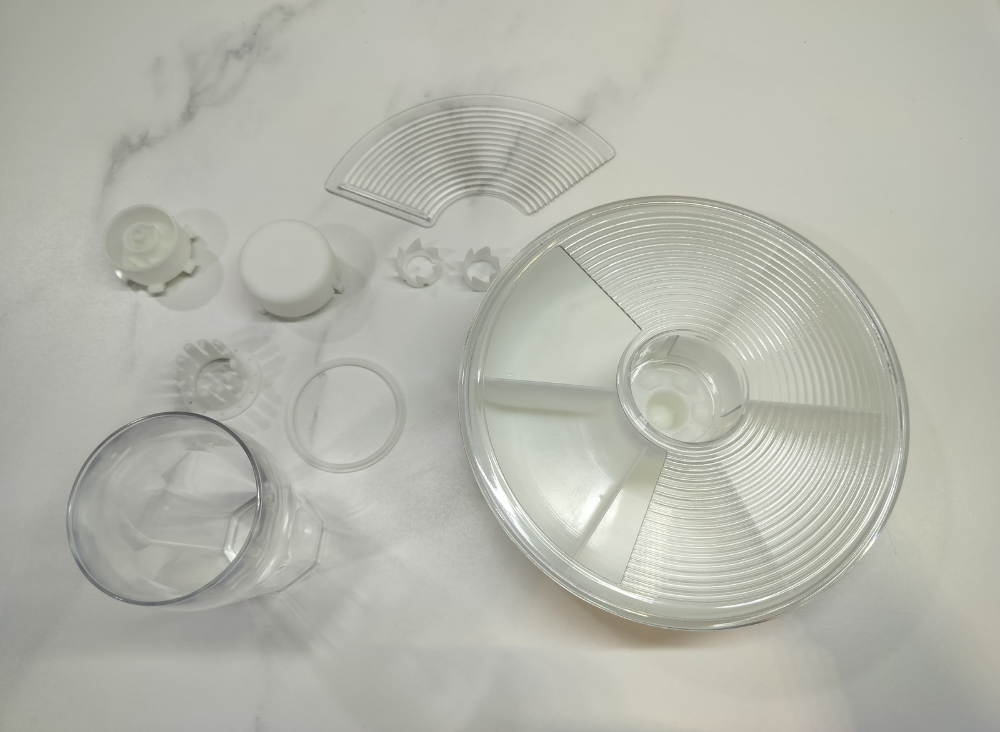

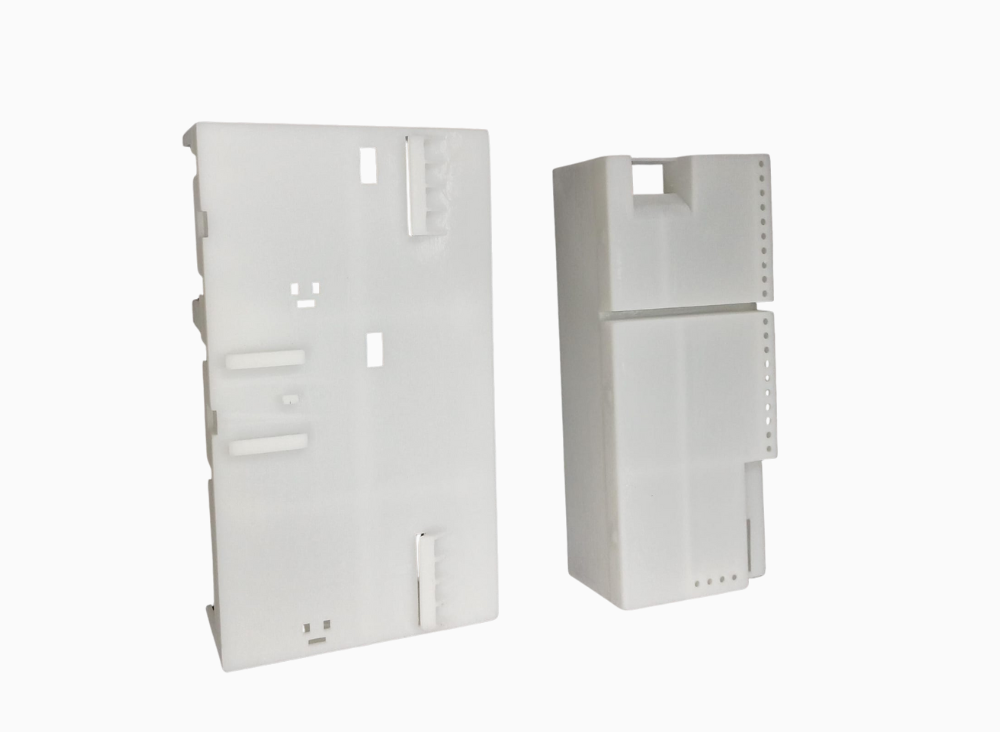

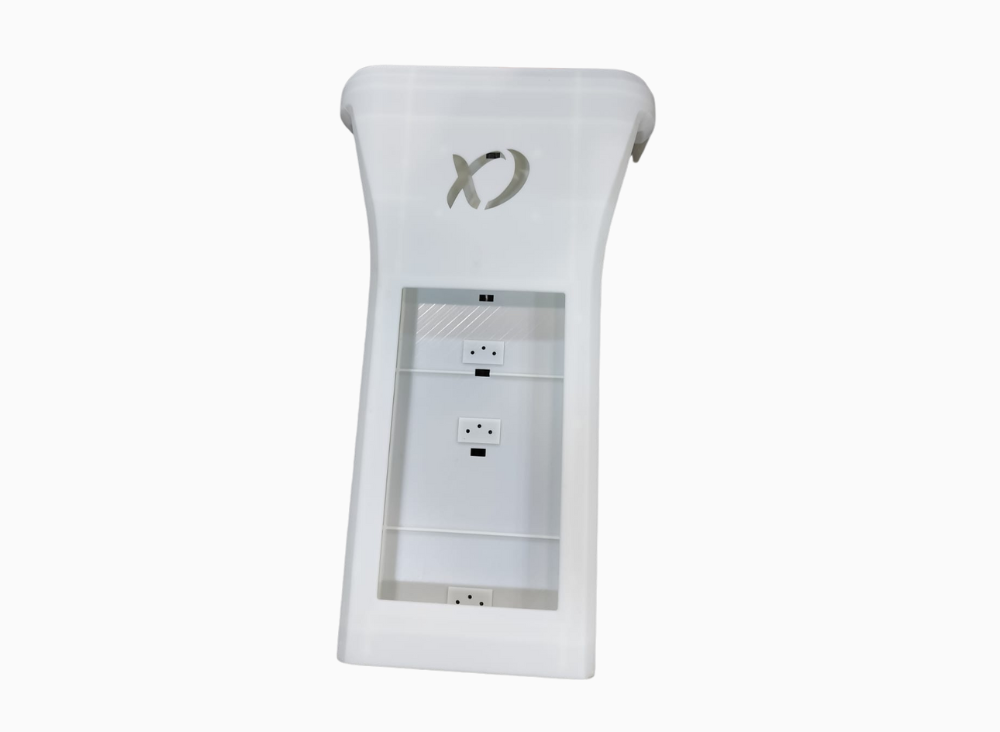

- Fine detail and smooth surface finishing
- Print intricate details with accuracy achievable up to 0.05mm
- Parts can be printed within minutes to hours according to the size and complexity
- Complex structure parts and assembly parts can be printed
- Tough, precise, colorful, pure and heat resistant resin available
iSLA880 Specifications
| LASER SYSTEM |
Type: Diode-pumped solid-state laser Nd:YVO₄ Wavelength: 354.7nm Power: 1000 / 2000 / 3000 mW |
|---|---|
| RECOATING SYSTEM |
Process: Intelligent positioning – Vacuum press recoat Normal Build: 0.1mm Quick Build: 0.1 ~ 0.15mm Precision Build: 0.05 ~ 0.1mm |
| OPTICAL & SCANNING |
Beam Diameter: 0.10~0.16mm(Normal) 0.10~0.50mm(Super) Scanning Galvanometer: High Speed Scanning Galvanometer Parts Scanning Speed: 6.0 m/s Jumping Speed: 10.0 m/s Reference Building Speed: 90 ~ 220 g/h(Super) |
| ELEVATOR |
Position repeatability: ±0.01mm Elevator Motor: High Accuracy Servo Motor Benchmark Platform: Marble Benchmark |
| RESIN VAT |
Volume: Approx. 450L @400mm(Z) XY Platform: 800mm(X) × 800mm(Y) Z Axis: 550mm Max Weight: 100kg @400mm(Z) Heated Style: Hot Air Photopolymer Resin: ZR680( Accurate & White ), ZR710( Tough & White ), ZR820( High Transparency ) |
| SOFTWARE |
Network: Ethernet, TCP/IP, IEEE802.3 Control: iSLA (ZERO 5.0) Date Preparation Software: 3dLayer Data Interface: CLI file, SLC file, STL file |
| INSTALLATION CONDITION |
Power: 200~240VAC 50/60Hz, single phase, 5 / 10Amps Temperature: 20–26°C Humidity: Less than 40%, non-condensing Size: 1.50m(W) × 1.40m(D) × 2.20m(H)(Operating computer is not included) Weight: Approx. 1000kg |
| WARRANTY |
Laser: 5000 hrs or 12 months (whichever comes first) Machine: 12 months from installation date |
